Diamond Carat Weight Calculator, Size Chart & Guide
Estimate diamond carat weight from millimetre measurements for modern and antique cuts, including old European, old mine and rose cut diamonds. This calculator uses established dimensional trade formulas. Exact carat weight requires the loose diamond to be weighed on a calibrated carat balance.
Diamond Carat Weight Estimator
For round shapes, measure the diameter in two directions across the girdle. If only one diameter is available, repeat the same number. For fancy shapes, length is the longest measurement and width is taken at a right angle across the widest point.
If depth is left blank, a broad typical depth assumption is used for supported shapes. For elongated diamonds, assumed depth is based on width, not average face-up size. A measured depth is required for rose cuts because their profiles vary too widely for a responsible default.
Settings can obstruct the girdle, pavilion and culet. Estimates from mounted measurements therefore receive a wider allowance.
Leave this as “Unknown or thin to medium” unless the girdle thickness is known from a report or can be assessed reliably. A thicker girdle adds weight without increasing the visible face-up measurements.
Use a correction only when the feature is genuinely present. These adjustments reflect additional material that is not fully represented by simple length, width and depth measurements.
Diamond carat weight explained
Carat is the unit used to describe diamond weight. One metric carat equals 0.2 grams and is divided into 100 points, so a 0.25 carat diamond weighs 25 points. Carat is often confused with visible size, but the appearance of a diamond also depends on its millimetre measurements, outline and proportions.
Two diamonds with the same carat weight can face up differently. A deeper stone can carry more weight below the girdle and appear smaller from above. A shallower stone may appear larger, although its proportions can affect light performance and durability. Antique cuts and rose cuts often differ substantially from modern round brilliants.
How this calculator estimates diamond weight
The calculator uses visible length, width and, where available, depth measurements in millimetres. For round diamonds, length and width should be two diameter measurements across the girdle. For fancy shapes, length is the longest measurement and width is measured across the widest point at a right angle to the length.
Round brilliant and round rose cut estimates use average diameter squared, multiplied by depth and a cut factor. Old European estimates use length multiplied by width, depth and an Old European factor. Supported fancy shapes use length multiplied by width, depth and a shape factor. Oval, pear, marquise, emerald and radiant factors are adjusted according to length-to-width ratio rather than applying one fixed factor to every outline.
If depth is not entered, the calculator does not pretend that one exact depth is known. It calculates a broad range from a shape-specific depth band based on width. The displayed midpoint is only a convenient face-up-size guide; the range is the more meaningful result. A measured depth is required for rose cuts.
The result is a central estimate with a broad allowance above and below it. This is not a laboratory confidence interval. It reflects normal uncertainty caused by depth assumptions, settings and variation in crown height, pavilion shape, girdle thickness, culet, outline and symmetry.
GIA is the authoritative source used here for carat weight, diamond anatomy and measurement terminology. GIA records round measurements as minimum diameter, maximum diameter and depth, and fancy shapes as length, width and depth. GIA does not endorse this calculator or publish one universal public coefficient chart for all shapes. The trade factors are cross-checked against Palmieri Market Monitor, Gem-A weight-estimation practice and established jewellery-trade conversion charts.
Exact carat weight requires the loose diamond to be weighed on a calibrated carat balance. A dimensional estimate can differ because actual weight is also affected by crown height, pavilion depth and shape, girdle thickness, culet size, symmetry, outline and any weight hidden by a setting. Antique, chipped, recut, unusually shallow or unusually deep diamonds may vary more than the displayed range. A recognised loose-diamond grading report will state measured carat weight, while a valuation or report prepared with the diamond still mounted may instead contain an estimated weight.
Round brilliant, old cuts and rose cuts

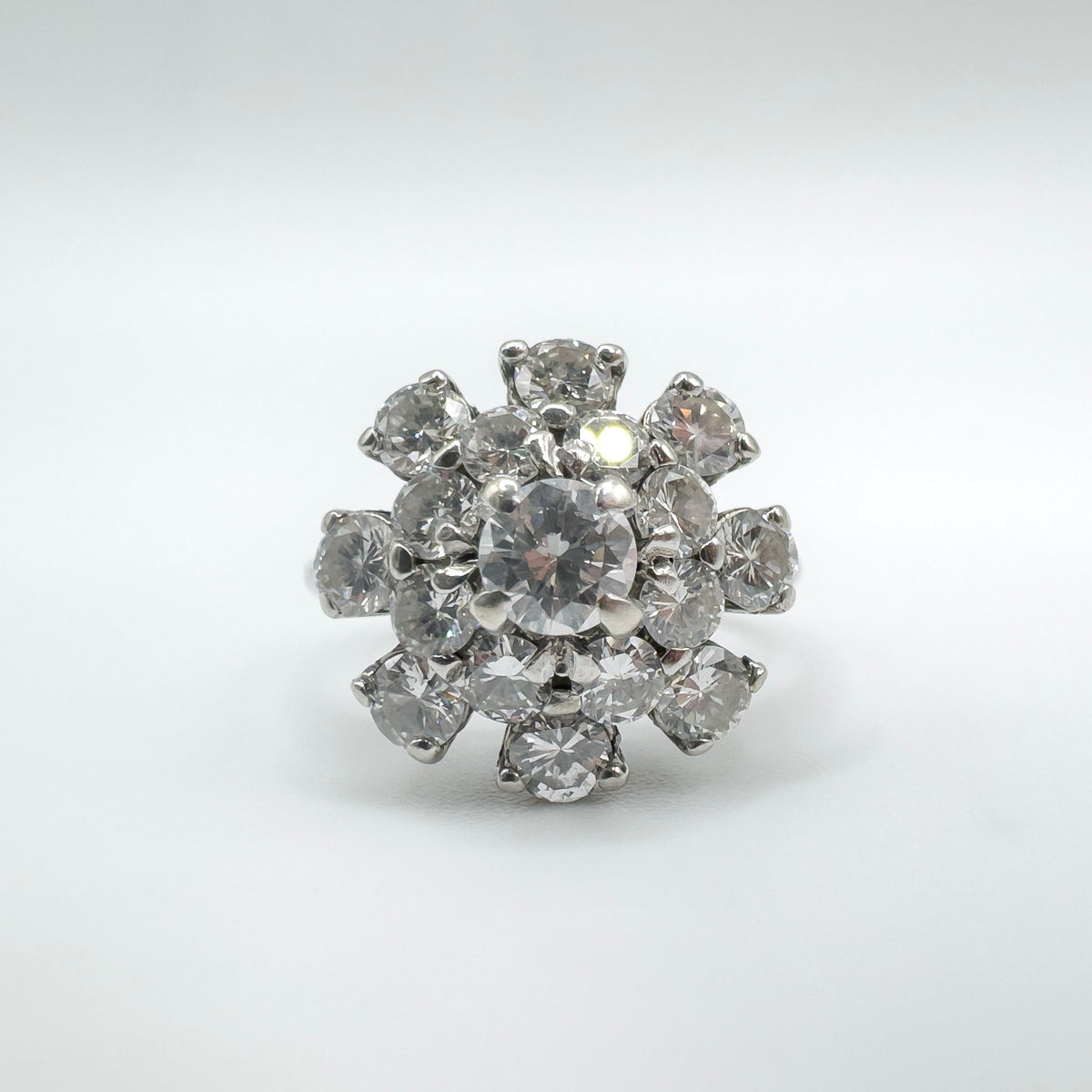

A modern round brilliant weighing approximately 1 carat often measures around 6.4 to 6.5 mm in average diameter, although actual face-up size depends on its proportions. A deeper diamond may carry more weight below the girdle and appear smaller from above.

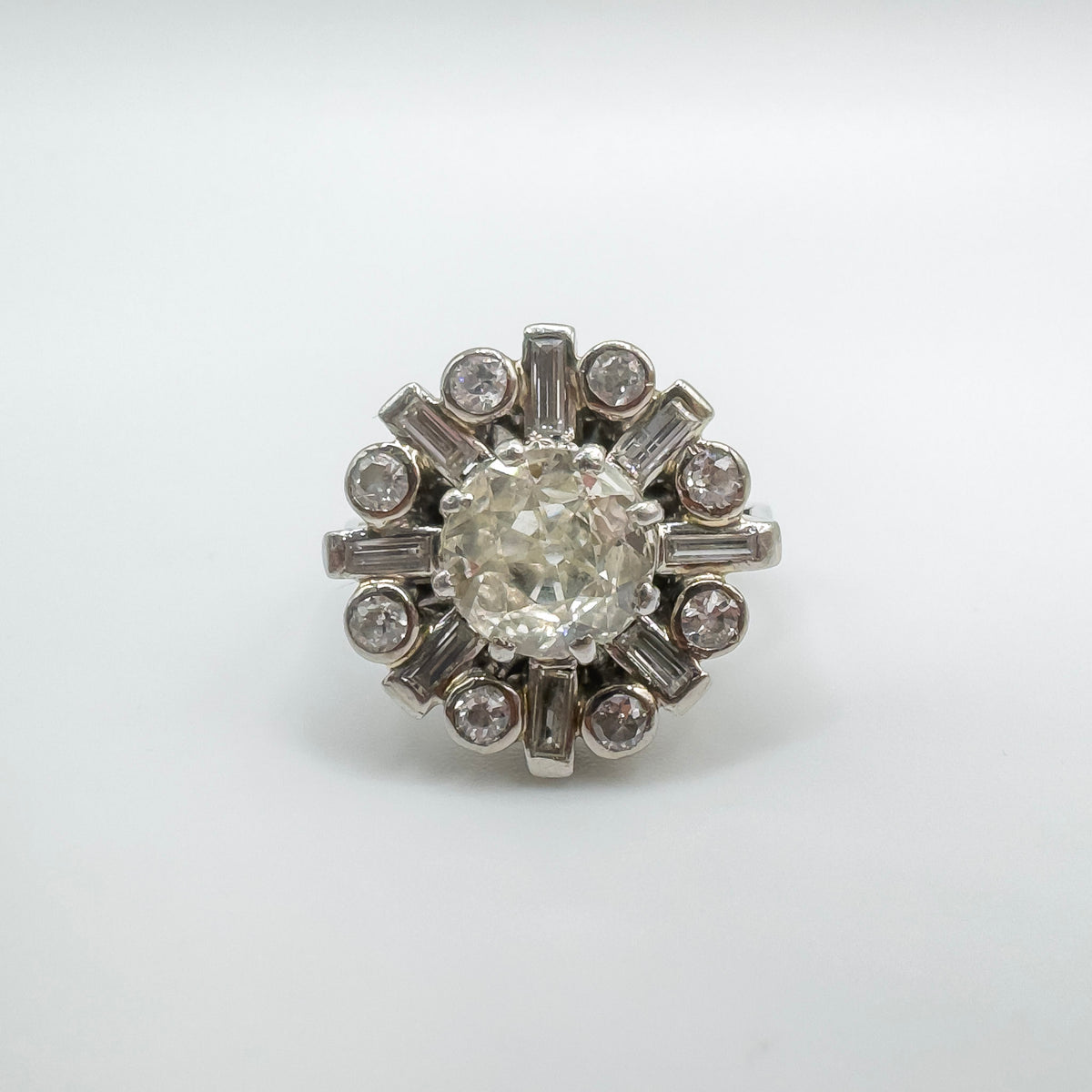

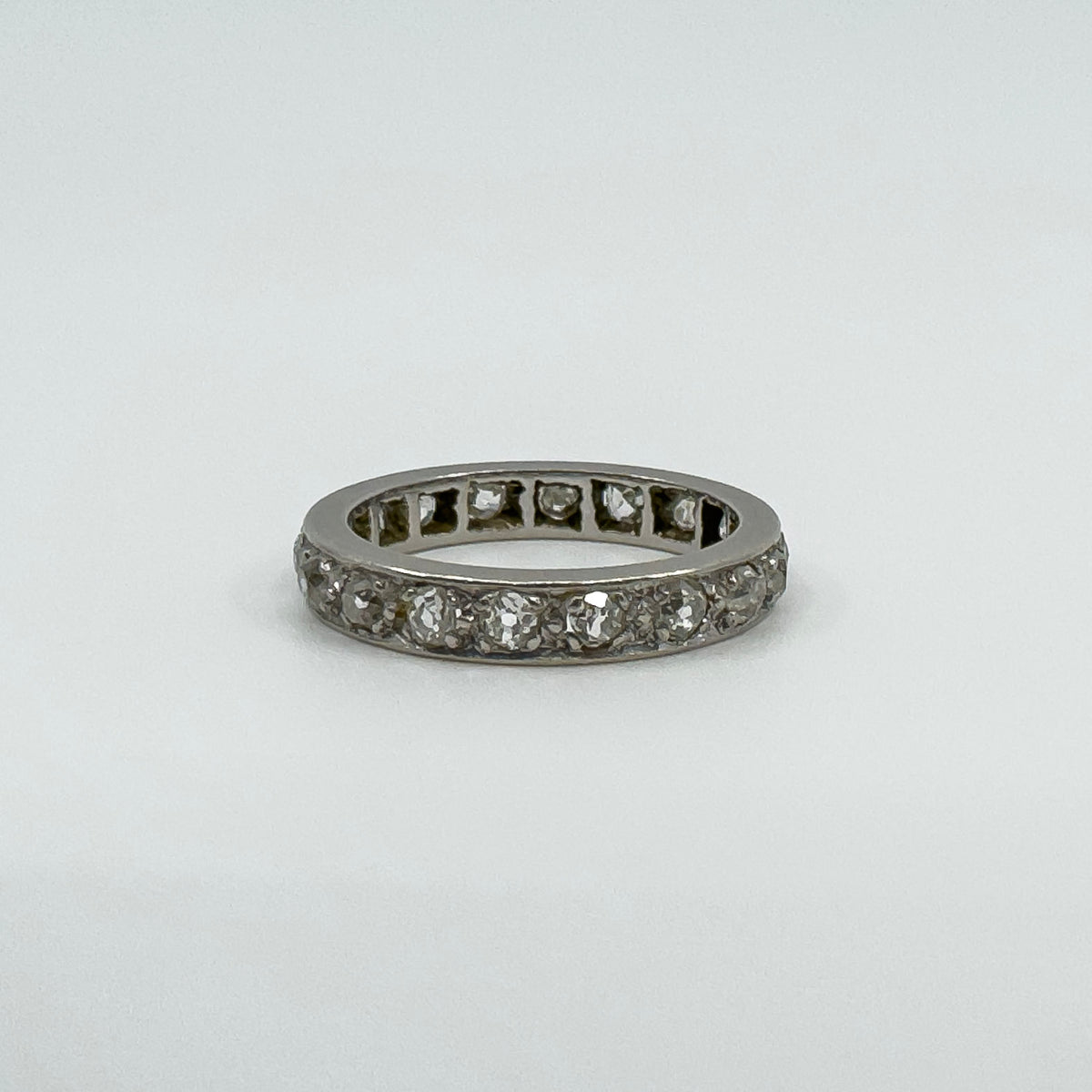

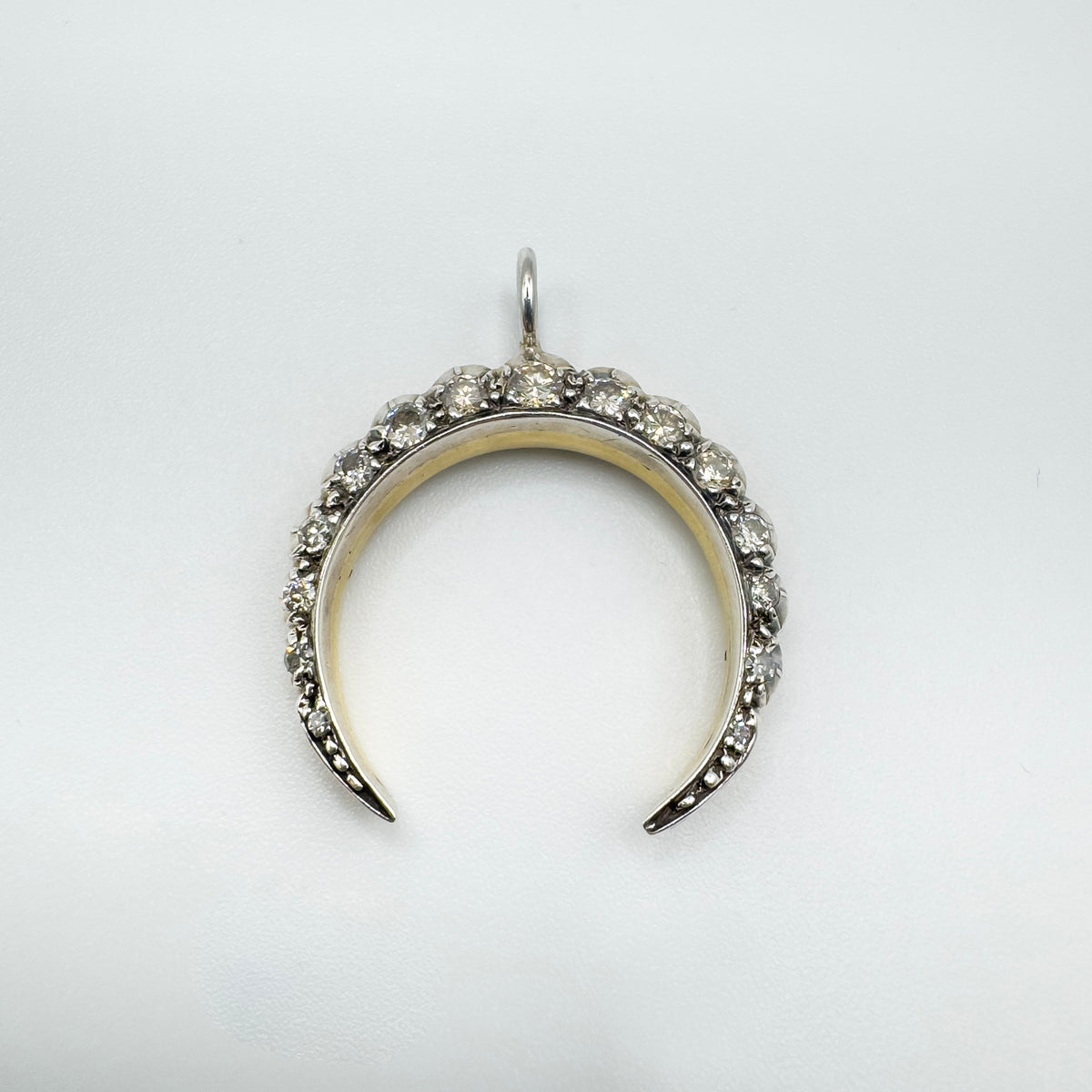

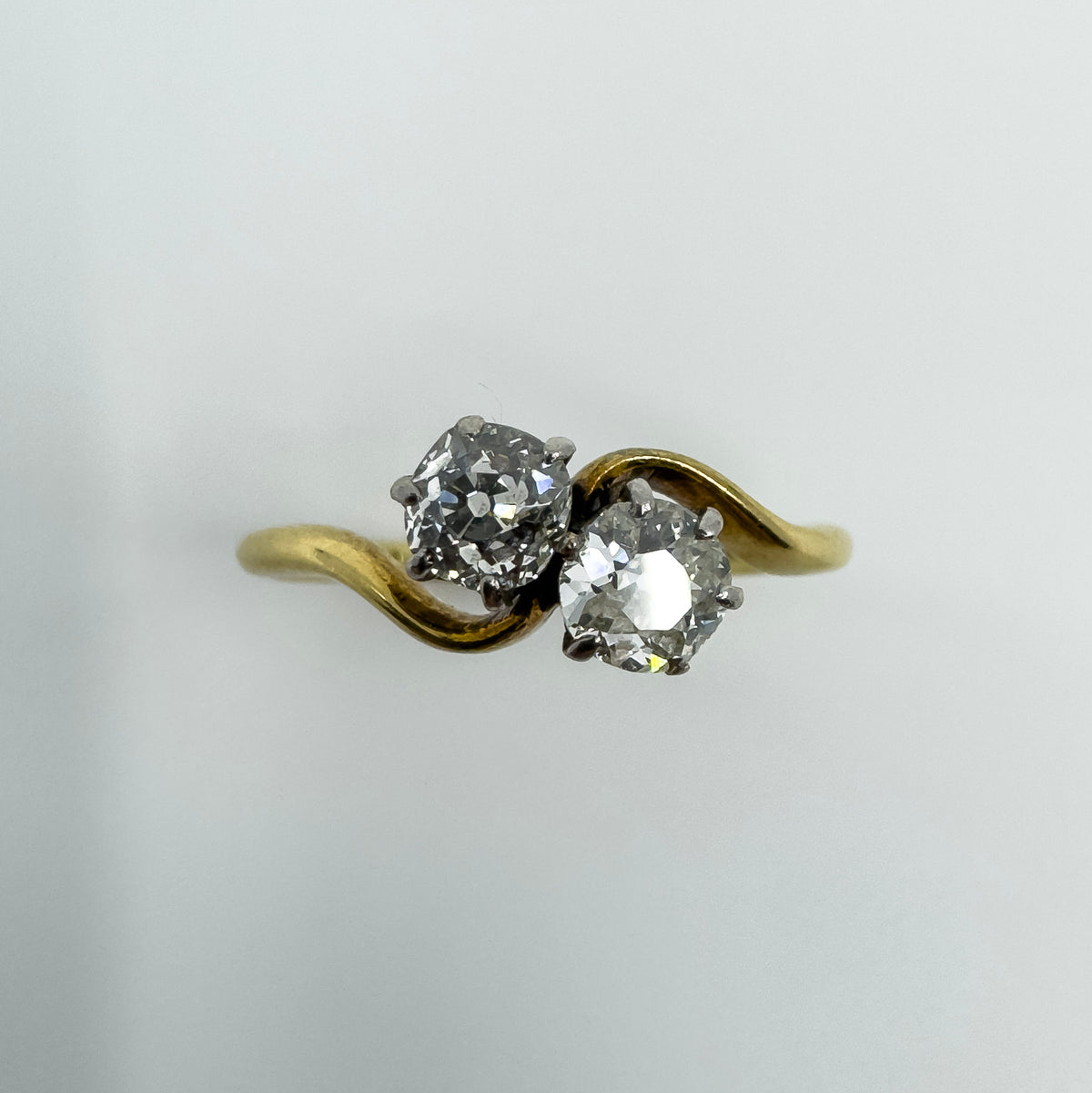

Old European cuts are generally round with higher crowns, smaller tables, open culets and greater total depth than modern round brilliants. Old mine cuts are usually cushion-like or softly square and can vary considerably in outline and proportions. These differences make antique-cut weight estimation less precise.

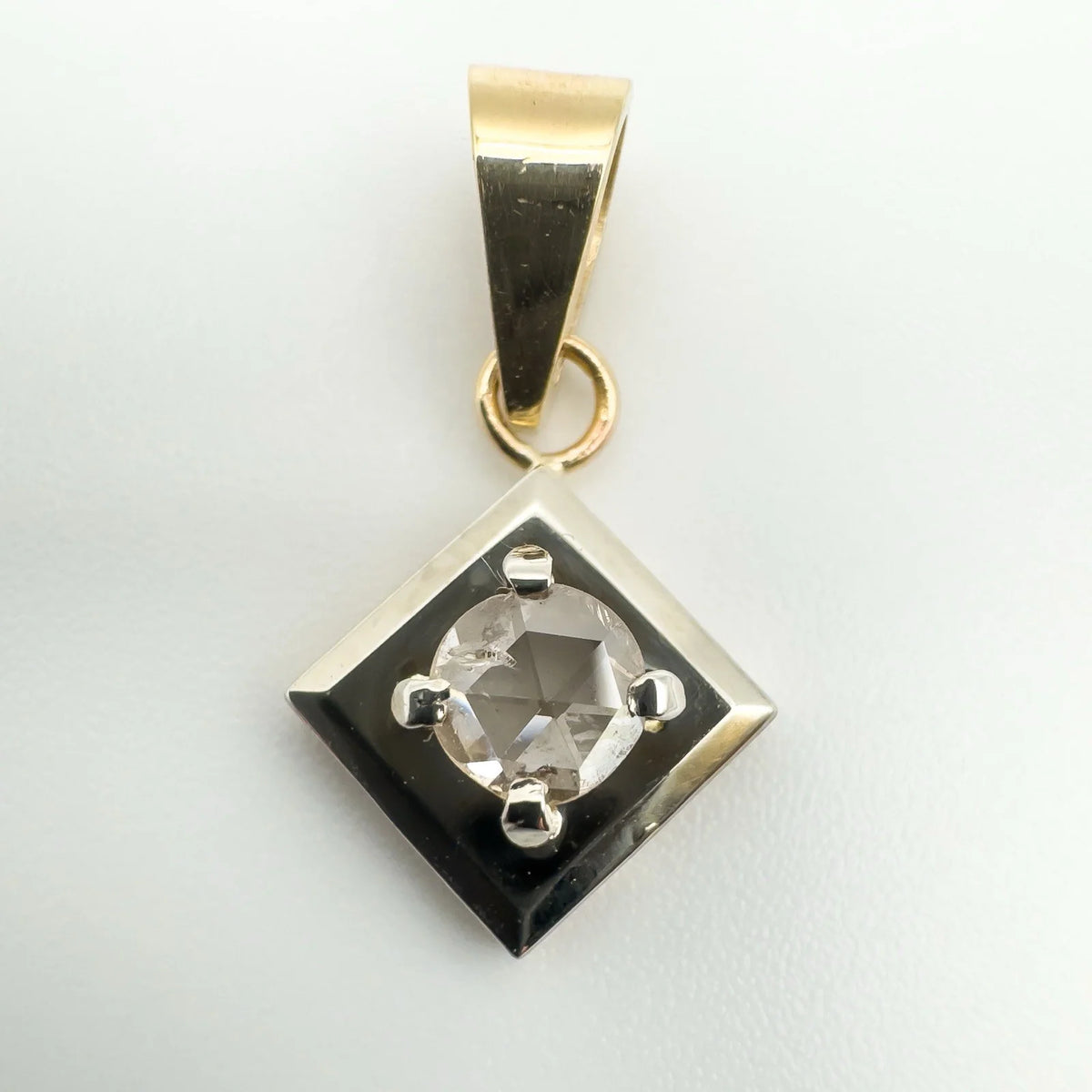

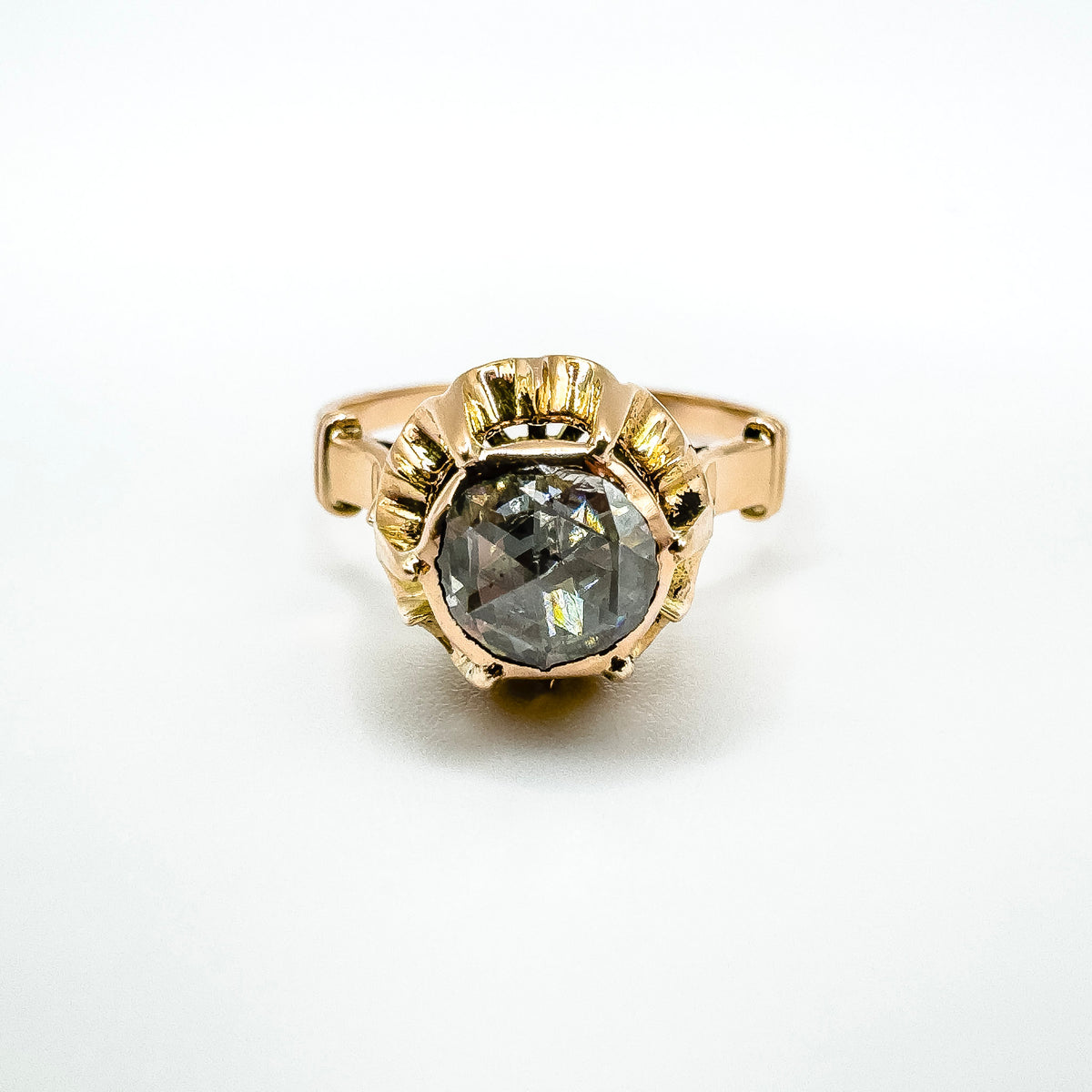

Traditional rose cuts generally have a faceted domed crown and a flat or nearly flat base. Their dome height and construction vary widely, and later double rose cuts do not follow the same profile as a traditional single rose cut. For this reason, the calculator requires a measured depth and gives rose-cut results a wider range.
For more background on diamond cuts, grading and older jewellery, read the diamond jewellery guide. You can also browse the current selection of preloved, vintage and antique diamond rings.
Quick round brilliant reference chart
The table shows typical face-up diameters for well-proportioned modern round brilliant diamonds. Individual stones can measure slightly larger or smaller at the same weight.
| Carat weight | Approx. diameter |
|---|---|
| 0.25 ct | ≈ 4.0 mm |
| 0.50 ct | ≈ 5.1 mm |
| 0.75 ct | ≈ 5.8 mm |
| 1.00 ct | ≈ 6.4 to 6.5 mm |
| 1.50 ct | ≈ 7.3 mm |
| 2.00 ct | ≈ 8.1 mm |
| 3.00 ct | ≈ 9.3 mm |
These measurements assume modern round brilliant proportions. Antique old cuts of the same weight may measure differently because of their crown height, pavilion depth, girdle, culet and individual hand-cut proportions.
How the estimate is calculated
View the calculation approach
Round diamond estimates use average diameter, depth and an appropriate round-diamond factor. Fancy-shaped diamond estimates use length, width, depth and a factor selected for the chosen shape.
For certain elongated and step-cut shapes, the factor is adjusted according to the diamond's length-to-width ratio. Where selected, the calculation can also allow for girdle thickness and identifiable profile characteristics.
When measured depth is not supplied, the calculator provides a broader estimated range based on typical proportions for the selected shape. It does not treat an assumed depth as an exact measurement.
Diamond carat and size FAQs
Is carat weight the same as diamond size?
No. Carat is a unit of weight, while visible size is described by millimetre measurements. A deeper diamond can carry more weight below the girdle and appear smaller face up than a shallower diamond of the same carat weight.
How accurate is this diamond carat weight calculator?
It provides a dimensional estimate using shape-specific trade formulas. It is most useful when length, width and depth can all be measured accurately. Estimates based on assumed depth are less reliable, and antique cuts, rose cuts, unusual proportions and mounted stones can fall outside the displayed range. Exact carat weight requires the loose diamond to be weighed on a calibrated carat balance.
Why can an old cut diamond look larger or smaller than a modern diamond of the same carat?
Old European, old mine and rose cuts can have different crown heights, pavilion depths, girdles, culets, outlines and facet arrangements. More weight may be held above or below the girdle, changing the visible face-up dimensions.
Should I measure a diamond in or out of its setting?
Loose-stone measurements are normally more reliable. When measuring a mounted diamond, measure the widest visible points without including claws or surrounding metal. The setting may conceal part of the girdle, pavilion or culet, so mounted-stone results should be treated as broader estimates.
Can I use this calculator for sapphires, emeralds or other gemstones?
No. This calculator is intended for diamonds only. Other gemstones have different densities and can require different shape factors, so stones with the same measurements can have materially different weights.
Does diamond shape affect how large it looks?
Yes. Elongated shapes such as ovals, marquise and pear cuts can cover more length on the finger for the same weight. Face-up appearance also depends on depth, outline, crown, pavilion and setting style.
What is the best way to know the exact carat weight?
The direct method is to unset the diamond and weigh it on a calibrated carat balance. A recognised loose-diamond grading report will state measured carat weight. A report or valuation prepared while a diamond remains mounted may instead state an estimated weight.
How does diamond carat relate to ring size?
Diamond carat weight and ring size are separate measurements. Carat describes the weight of the stone, while ring size describes the inner diameter or circumference of the band. Use the Ring Size Calculator & Chart if you also need to compare UK, US and EU ring sizes.
Methodology
This calculator uses recognised dimensional weight estimation methods based on a diamond's shape, length, width and depth. Shape-specific factors and appropriate adjustments are applied to produce an estimated carat weight.
The methodology has been independently developed using GIA measurement conventions, Gem-A educational guidance and established jewellery-trade weight-estimation references. Formula structures, measurement inputs and adjustment logic were cross-checked against additional published trade calculators and charts without reproducing their code or wording. Exact carat weight can only be confirmed by weighing a loose diamond on a calibrated carat balance. Results for mounted, antique or unusually proportioned diamonds should be treated as estimates.
This is an independent educational tool and is not affiliated with or endorsed by any cited organisation.
